Open by design. Repairable by default.
Multi-stage filtration down to 0.1 µm, followed by UV disinfection. We publish the measured flow rate, the operating limits, and what the system does not remove.
See the Specifications The Pioneer EditionEngineering You Can Trust
WeissExplorers builds fully transparent, repairable water purification systems — grounded in real mechanical engineering, not black-box gadgets. Every system is designed to industrial standards, so it performs when it actually matters.
Read Our Blog

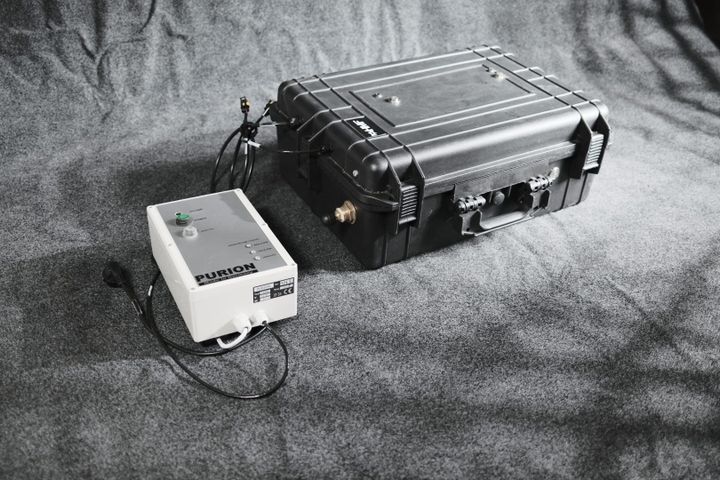

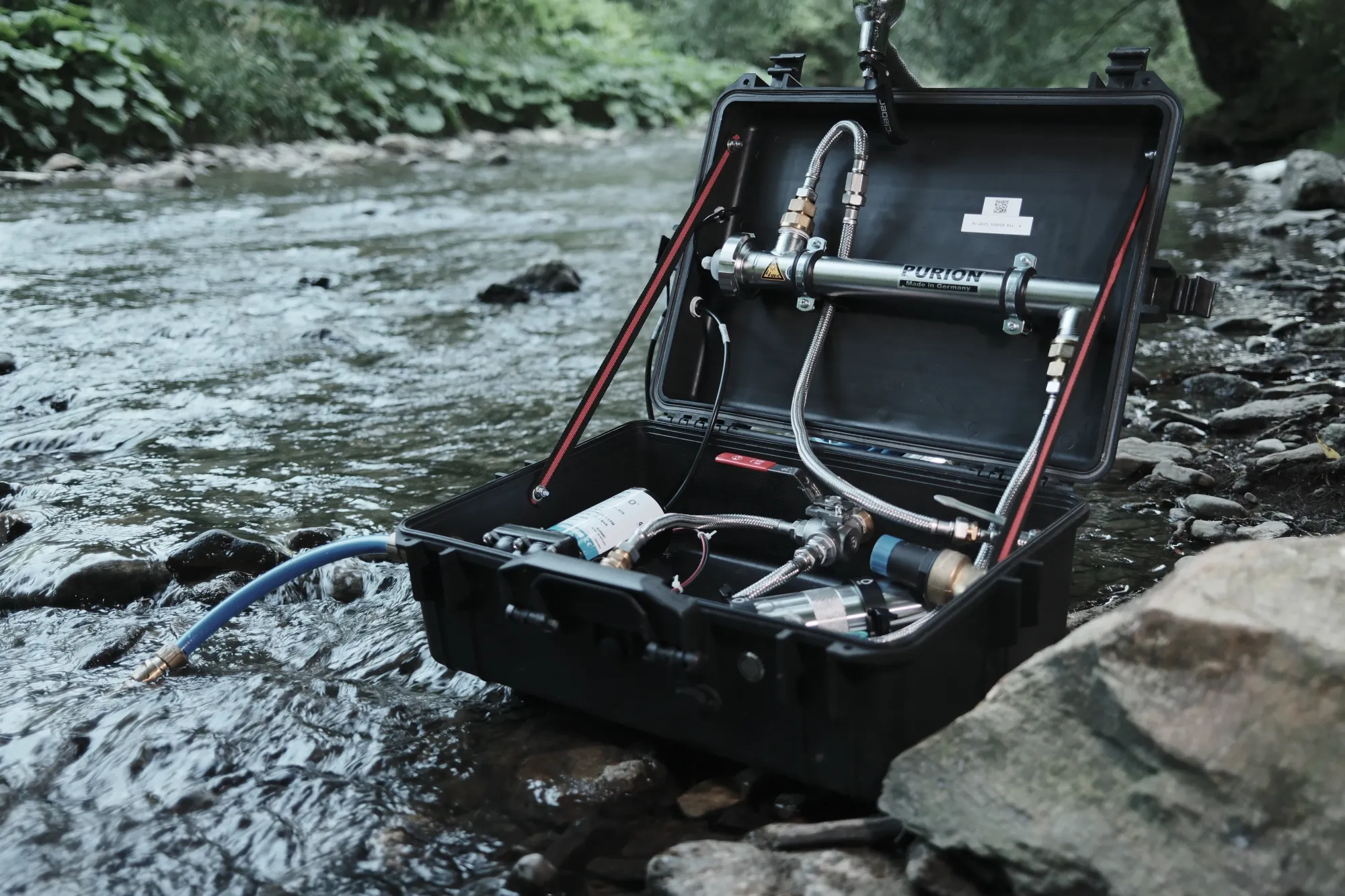

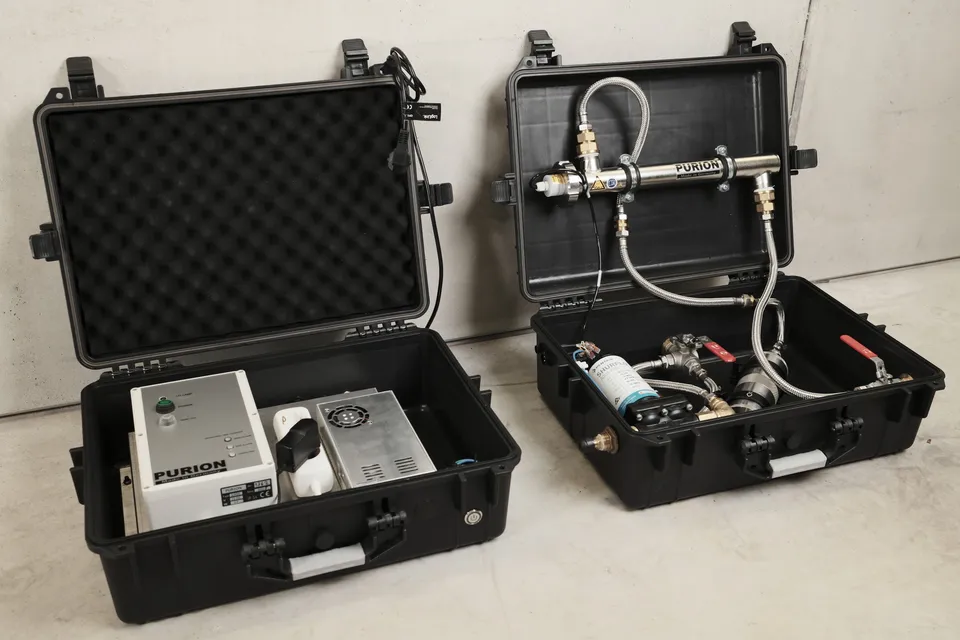

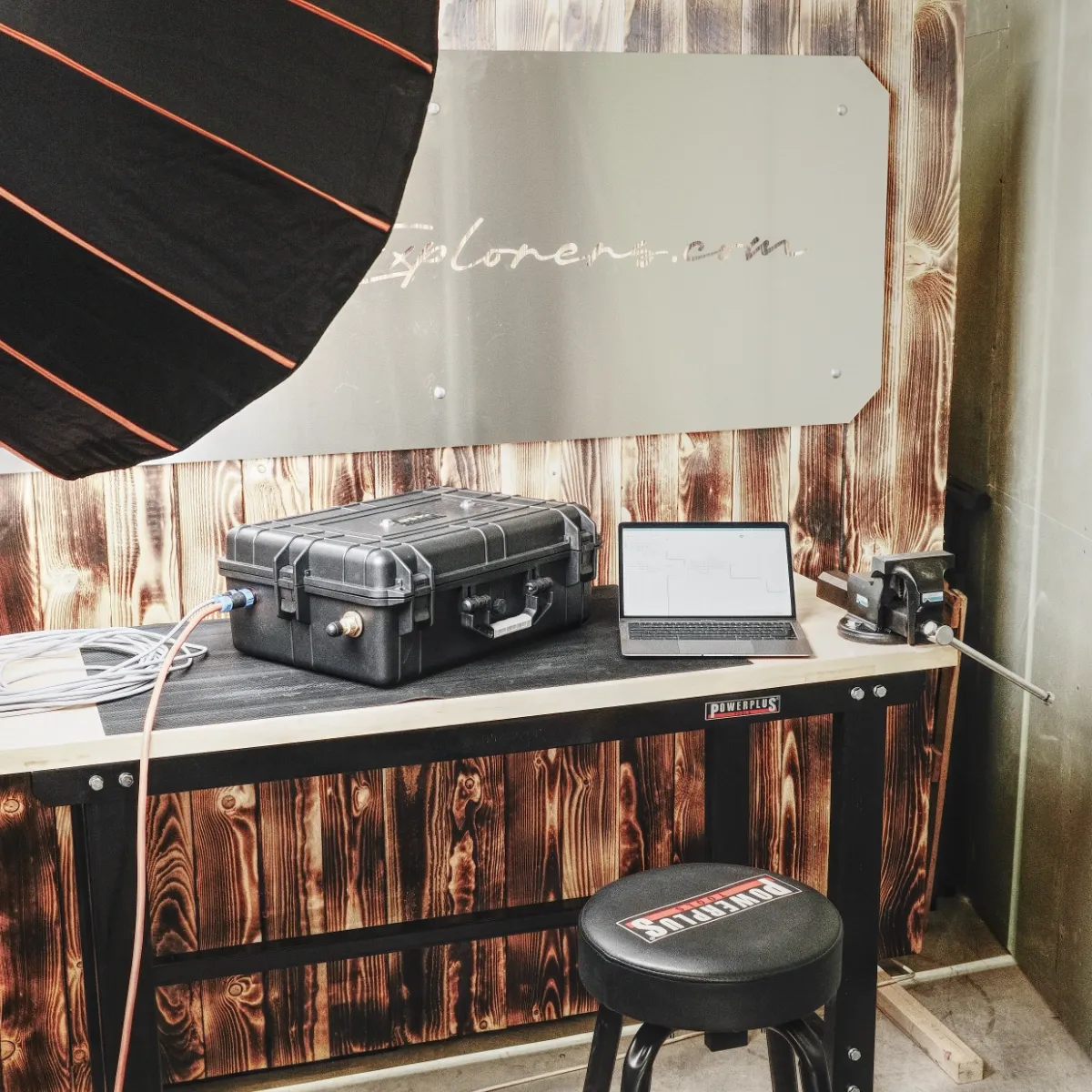

The Pioneer Edition
Multi-stage, portable, and built to be opened, understood, and repaired — anywhere.
If you want to skip the workbench and head out with a 100% field-ready, professionally validated system, this is your chance. This fall, I am personally hand-building a limited batch of physical Revision B Systems right here in Styria, Austria.
Request a Build SlotPioneer Edition Specification
| Flow rate | 10 l/min after all stages |
| Filtration stages | Coarse filter · sediment filter · activated carbon · 0.1 µm UF · UV-C |
| Removes / inactivates | Chlorine, microplastics, solids, turbidity, bacteria, protozoa, helminth eggs, viruses |
| Power | 230 V mains or mobile battery, 50 W typical / 140 W max |
| Housing | IP67 outdoor cases, dust and water protected |
| Weight | Two cases, 13 kg and 12 kg |
| Setup time | 5 minutes, one person |
- Does not remove dissolved salts — not designed for seawater or highly mineralized water
- Heavy metals, PFAS, pesticides and nitrate are only partially retained
- Heavily turbid raw water shortens filter service life significantly
- Requires a power source
Design follows the filter stage manufacturers' specifications. Independent lab testing of the full system is underway.
